Processor System

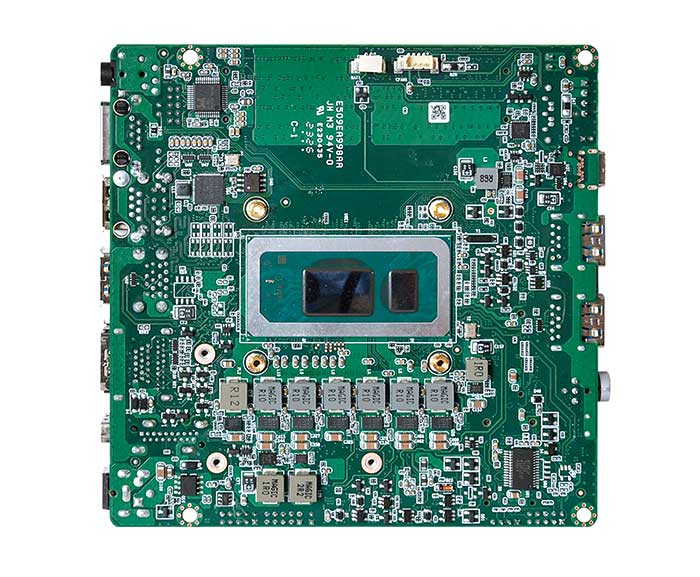

Onboard Intel Alder Lake-U/-P series processor, TDP 28W

EFI BIOS

Memory

2*DDR5 SO-DIMM, up to 64GB total

Storage

2*M.2 M-Key 2280(NVMe PCIe 4.0 x4/SATA3.0 protocol), order notes

1*SATA3.0 interface, 2Pin 5V power supply

Display

2*HD-MI2.0 interface, support 4096x2160@60Hz

1*DP, support 7680x4320@60Hz

Type-C interface, support DP 7680x4320@60Hz和USB3.2 Gen2

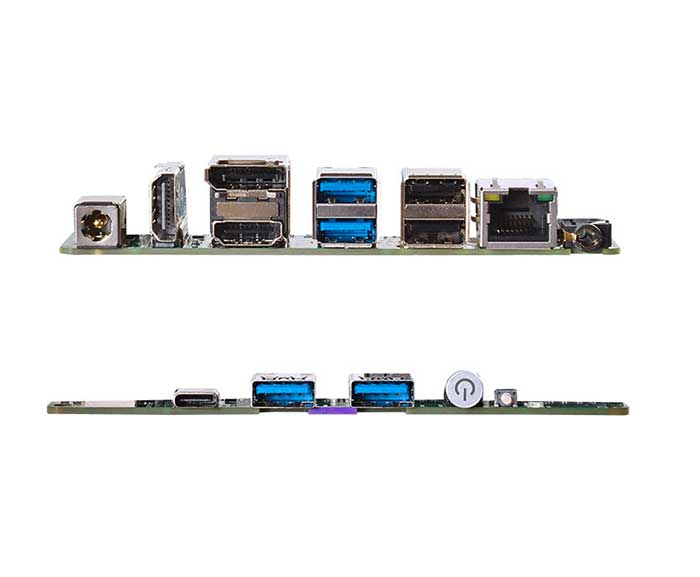

Board Side I/O Interface

Power on button, 2-in-1 audio jack, reset button, 4*USB3.0

DC JACK, 2*HD-MI, 1*DP, 1*Type-C

Single and dual-network optional: single-network, rear I/O more than 2 * USB2.0

Expansion Interfaces/Features

External TPM2.0 optional, not available by default. Default is CPU built-in TPM2.0.

1*M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module)

1*RS232/RS485 pin spacing 2.0mm

1*USB2.0 Pin, 2x5Pin, Pitch 2.0mm

1*4Pin PWM CPU FAN

Power Supply

DC 12-19V, 120W or above

Operating Environment

Operating Temperature: -20℃ ~ +60℃; Operating Humidity: 5% ~ 90

Storage Temperature: -40℃ ~ +85℃; Storage Humidity: 5% ~ 90%

Operating System Support

Windows 10, Windows 11, Linux

Dimension

120x120 mm

Net Weight

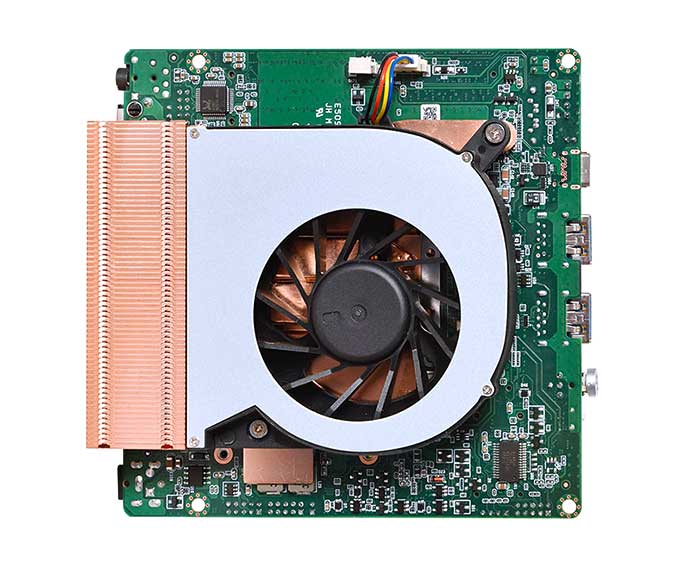

Approx. 130g without heat sink, 250g with heat sink
